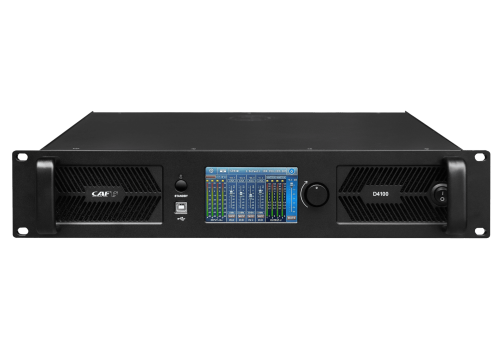

CAF D4100

Model: CAF D4100

CAf D4100 là cục đẩy công suất 4 kênh x 1000w tích hợp sẵn bên trong bộ xử lý tín hiệu có tính năng nắn đáp tuyến + phase FIR ( tương đương PLL-4080G ). Sử dụng cho dự án rất cạnh tranh vì các đối thủ cùng tầm tiền không có tính năng này.

Device identification, remote power on/off, DSP control, network joint adjustment
Free setting of power, current limit and voltage limit, real-time impedance detection
Dante and control signal hand-in-hand transmission
Standard 4-channel FIR function, 4*2048 TAPS
4-channel Dante optional
Mconsole unified management
USB driver-free
Dual RJ45 interface/TCP protocol
GPIO control
Analog/AES3/Dante (optional).
Equipped with 4.3-inch IPS capacitive touch screen
Type: 4-channel power amplifier
8Ω (Stereo): 4 x 1000W
4Ω (Stereo):4 x 1600W
8Ω (bridge):2x3200W
Frequency response (±0.5dB): 20Hz-20kHz
Input sensitivity:32dB
Total harmonic distortion: ≤0.05%
SNR: ≥100dB
Damping coefficient: ≥600
Channel resolution:≥60dB
Protection: Soft start, DC, high -frequency, overheating, short -circuit, limited amplitude, boot/shutdown mute protection
Input impedance(balanced / unbalanced): 20KΩ/10KΩ
Output category: Class D;
Input connection:XLR connector
Output connection: Speaker socket
Power SUPPLY: ~100V-240V/50-60Hz
Product size(HxWxD): 88x483x400mm
Package size(HxWxD): 160x615x516 mm
Net weight: 9.75kg
G.W.: 10kg
